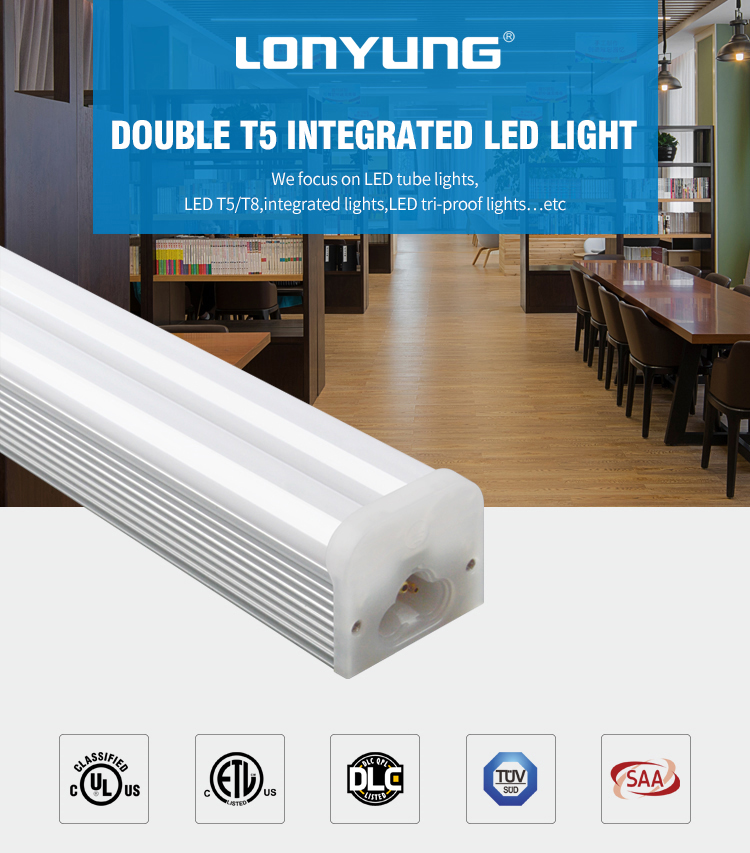

Features
● Patent Male-female linkable design
● Seamless & No Dark in-line connection
● UL ETL TUV SAA approved, DLC Listed
● 0.8mm aluminum housing for excellent heat dissipation
● Easy replacement and installation with brackets
Technical Specifications
● Input Voltage: Isolated Driver
AC100-277V 50/60Hz / AC100-240V 50/60Hz
● Total harmonic distortion: THD<19%
● Power Factor: PF>0.95
● Efficiency: 110-130LM/W
● Color Index: Ra>82
● IP Rating: IP40
● Switching Time: 100,000
● Lumen maintenance @6000h: >80%
● Operation Temperature: -20°C ~ +50°C
Applications
● Replaces T8/T12 fluorescent fittings
● Warehouses, factories & food storage
● Supermarket, shopping malls, Office
● Home, Hotel, Parking lot, garage etc
Item No. |
Length |
Power |
LED type |
LED QTY |
Power Factor |
Luminous flux(LM) |
CRI |
Package |
LY-T5SL600-15W |
2ft/600mm |
15W |
SMD2835 |
96pcs |
PF>0.95 |
1650-1950lm |
>82 |
710*260*180mm;20pcs/ctn |
LY-T5SL900-25W |
3ft/900mm |
25W |
SMD2835 |
144pcs |
PF>0.95 |
2750-3250lm |
>82 |
1045*260*220mm;20pcs/ctn |
LY-T5SL1200-40w |
4ft/1200mm |
40w |
SMD2835 |
192pcs |
PF>0.95 |
4400-5200lm |
>82 |
1310*260*180mm;20pcs/ctn |
LY-T5SL1500-40W |
5ft/1500mm |
40W |
SMD2835 |
240pcs |
PF>0.95 |
4400-5200lm |
>82 |
1645*210*180mm;16pcs/ctn |
LY-T5SL1800-44W |
6ft/1800mm |
44W |
SMD2835 |
288pcs |
PF>0.95 |
4840-5720lm |
>82 |
1945*210*180mm;16pcs/ctn |
LY-T5SL2400-60W |
8ft/2400mm |
60W |
SMD2835 |
384pcs |
PF>0.95 |
6600-7800lm |
>82 |
2460*175*160mm;9pcs/ctn |
Options
-Fuctions: Normal / Triac Dimmable / ON-OFF Switch
-Connection Way: Lead in wire / M-F Connection / Power cord with Plug
-Installation Type : Standard Clip / Magnetic Clip / Suspending Kits
Product line drawing
Standard Accessories
Length for power cord or connection cable can be customized.
